Acid Resistance 135Mpa Custom Graphite Molds For Metal Melting

Acid Resistance 135Mpa Custom Graphite Molds For Metal Melting

  • High Light

    135Mpa Custom Graphite Molds

    ,

    Metal Melting Custom Graphite Molds

    ,

    135Mpa Graphite Ingot Mold

  • Application
    Metal Melting
  • Technique
    Die Molded
  • Bulk Density (g/cm³ )
    1.60--1.85g/cm³
  • Porosity (%)
    13%
  • Compressive Strength
    45-135Mpa
  • Materials
    High Pure High Density Graphite
  • Place of Origin
    shanghai
  • Brand Name
    SGI-GRAPHITES
  • Certification
    ISO , CE
  • Model Number
    Customized products without models
  • Minimum Order Quantity
    10pcs
  • Price
    negotiable
  • Packaging Details
    wodden cartons or meet customers' requirements
  • Delivery Time
    10-25 working day
  • Payment Terms
    T/T
  • Supply Ability
    1000pcs per day

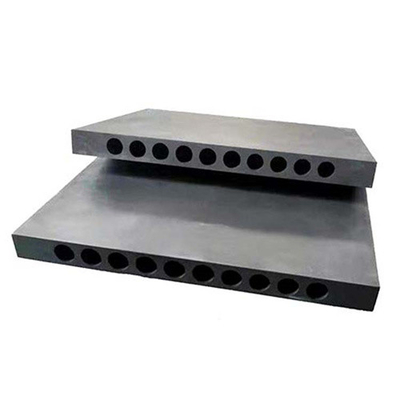

Acid Resistance 135Mpa Custom Graphite Molds For Metal Melting

Gold Graphite Mold Graphite Mold Casting Customized Gold Silver Casting Carbon Graphite Mold

Application:Metal Melting
Technique:Die Molded
Resistance (μΩ.m):9~12 μΩ.m
Bulk Density (g/cm³ ):1.60--1.85g/cm3
Porosity (%):13%
Compressive Strength:45-135Mpa
Materials:High Pure High Density Graphite

Features:

1. Thermal stability: According to the quench acute thermal using conditions of graphite crucible, we will specially design the production procedure, so as to ensure the reliability of product quality.



2. Corrosion resistance: Even and fine basic design will delay the erosion of crucible.

3. Impact resistance: Graphite crucible can bear high thermal impact, so any process can be carried out.

4. Acid resistance: The adding of special materials will greatly improve the quality of crucible, especially its index of acid resistance., and will prolong the service life of graphite crucible.

5. High heat Conduction: High content of fixed carbon ensures the good heat conduction, shorten the time of dissolution, and remarkably reduce the energy consumption.

6. Control of metal pollution: The component of material under strict control will ensure that graphite crucible will not pollute the metals when dissolving.

7. Quality stability: The process technology of forming under high pressure and quality guarantee system will fully ensure the stability of quality.




TWICE IMPREGINATI ON AND THREE TIMES BAKING
THREE TIMES IMPREGINATI ON AND FOUR TIMES BAKING
Density
(g/cm3)
1.80-1.85 1.85-1.90
Electric Resistance
(μ Ω-m)
8-10 8-10
Compressive Strength
(Mpa)
90 107
Flexural Strength
(Mpa)
40 45
Carbon content 99% 99%
Shore hardness 55 64



Application:


1. Brass continuous casting mold.

2. Red copper continuous casting mold.

3. Continuous casting mold for jewelry of gold, silver, platinum, etc.

By the shape of the cast product, it is divided into round bar mold, hollow tube mold, and shaped mold.
